Aerotech LZR2000 Helium-Neon Laser (Gallery)
This is a single frequency stabilized HeNe laser based on the Aerotech
Syncrolase 100, but repackaged along with an optical receiver specifically
for metrology applications.
-
View 01 - Left front view.
-
View 02 - Front closeup view. The laser beam exits the top hole
while the return beam enters the bottom hole. The front ring may be
rotated 45 degrees right to block the beam or 45 degrees left to use
the small "alignment sperture".
-
View 03 - Right back view.
-
View 04 - Back closeup view. The DIN connector is for the SIN/COS
(analog) signal while the DB9 connector is for the SIN/COS line driver
(digital signal).
-

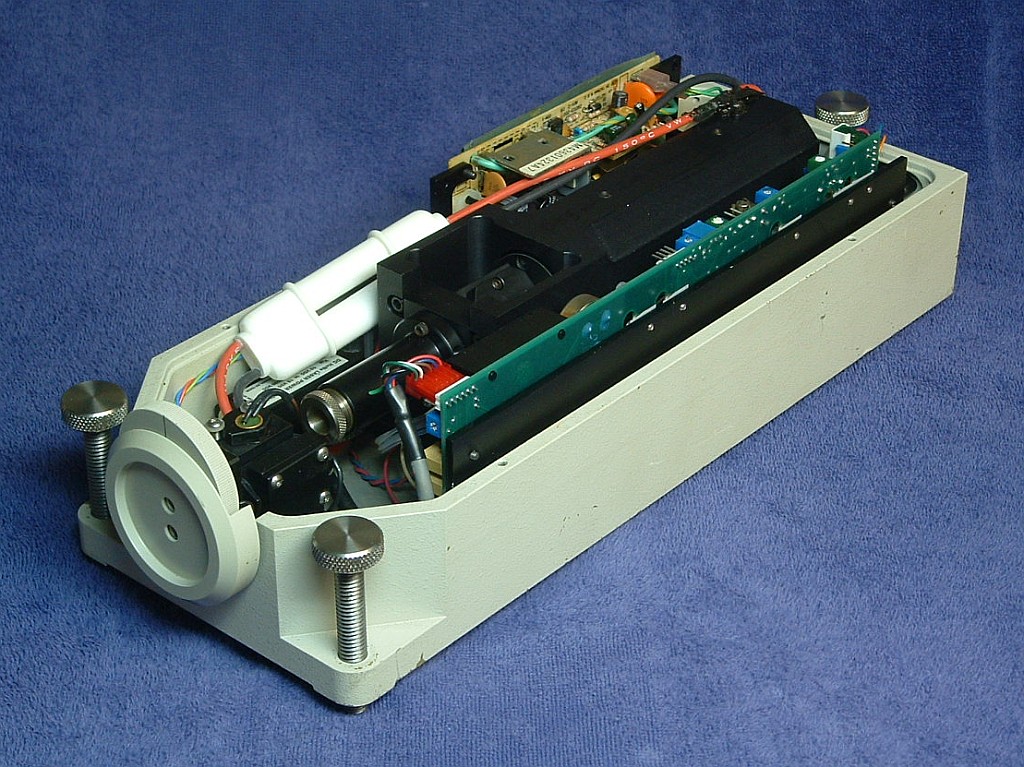

View 05 - Left front interior view.
-
View 06 - Left side interior view.
-
View 07 - Right back interior view.
-
View 08 - Right side interior view.
-
View 09 - View of left side of tube assembly.
-
View 10 - View of right side of tube assembly.
-
View 11 - Closeupf view of back of laser tube.
-
View 12 - Closeupf view of optical receiver beam sampler assembly.
-

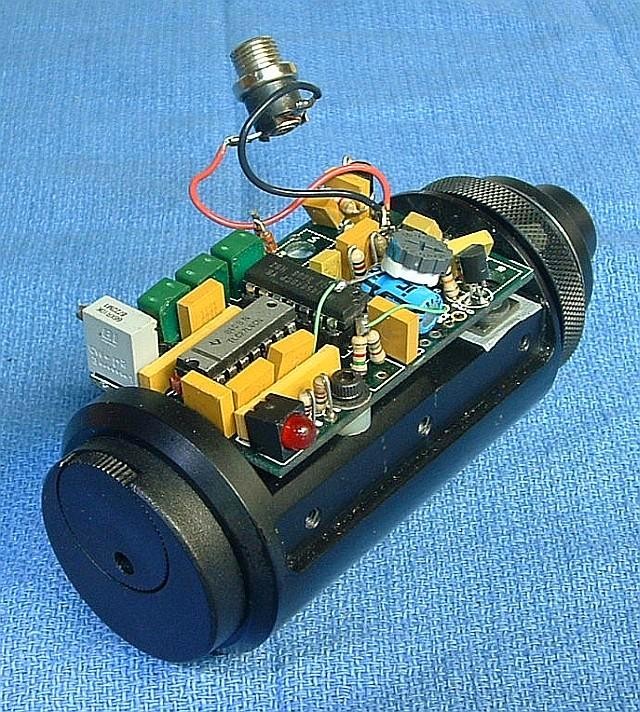

View 13 - Closeup view of the control PCB.
