    Photos of BUGBLASTER SR - High Power CW YAG Laser in Action

    (Photos and description courtesy of: Curt Graber (cgraber@fwi.com).)

    This unit which we affectionately call "BUGBLASTER SR" (not to be confused with its smaller relative) is made up of components of several laser systems including: Lasersonics 8000 Nd:YAG surgical laser, Spectra-Physics 3000 YAG pieces, 8 mW HeNe laser for beam positioning, optics from many different sources, and Mr. Stinkbug (from backyard). :-)

    I'm setting the unit up for 532 nm frequency doubled operation for light shows and also incorporating a fiber delivery system to go to a scanning head (light show stuff) and an X/Y table for engraving purposes.

    Power and cooling requirements are: 230 VAC three-phase at 23 A per leg with 2.3 gpm at 25 to 45 psi for sustained full power output.

    Unit dimensions are 40" H x 52" D x 28" W and its weight is approximately 545 lbs (lots of steel!).

    YAG max power output exceeds my coherent meter range of 100 watts.

    YAG min attainable semi-stable (threshold) CW output is about 750-800 mW.

    I have made a few modifications to the original laser cavity, power supply and optics to allow for a higher power output than the OEM original design.

    The actual YAG rod is .250 in diameter and 5.25 inch long and is completely liquid cooled. The krypton bulb has a 6 inch arc with an envelope approximately 3/8 inch in diameter. It has an output I'm told of many thousands of watts (yet to be precisely determined).

    There are plans for a future chapter on solid state lasers in Sam's Laser FAQ but don't hold your breath in anticipation. :-)



    BUGBLASTER SR - High Power CW YAG Laser in Action

    View 01 View 02 View 03

    View 04 View 05 View 06

    View 07 View 08 View 09

    View 10 View 11 View 12

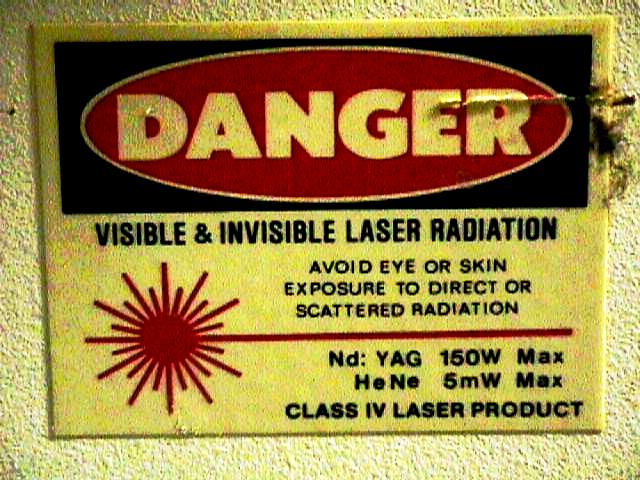

    View 13 View 14 View 15

    View 16
