Newport NL-1 Stabilized Helium-Neon Laser (Gallery)
This is a dual polarized mode stabilized HeNe laser from
Newport and is
derived directly from the Laseangle RB-1 but it no longer looks like
someone's science fair project. :) As far as I know, the NL-1 was
the only stabilized laser ever sold by Newport that
was actually manufactured by them. (Newport currently lists the REO SHL
but at most, they put the Newport logo on it, if that.)
-
View 01 - Left front view.
-
View 02 - Front closeup view. It's basically a plate with a hole.
There was a cap on a chain that could be popped into the hole to serce
as a shutter, but that has somehow disappeared.
-
View 03 - NL-1 laser head - right back view.
-

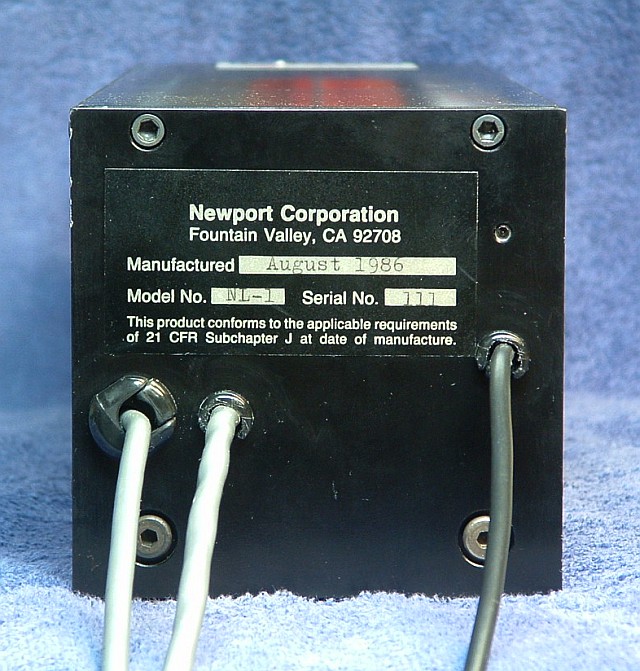

View 04 - NL-1 laser head - back closeup view.
-
View 05 - NL-1 laser head - left front interior view.
-
View 06 - NL-1 laser head - right back interior view.
-
View 07 - NL-1 laser head - left side interior view. The photodiode
pre-amp PCB on the left.
-
View 08 - NL-1 laser head - right side interior view.
The cylinderical housing contains
a Polarizing Beam-Splitter (PBS) that samples one of the polarized modes
(P-polarized) and blocks it from exiting the laser. There is also a
~10 percent 45 degree mirror that samples the other polarized mode
(S-polarized). The photodiodes are mounted under the copper block.
-

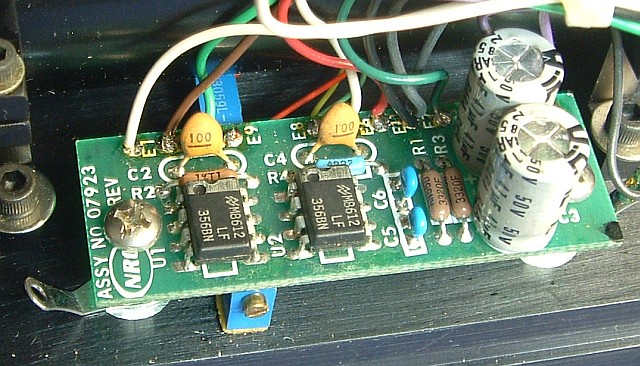

View 09 - NL-1 laser head - closeup of Pre-Amp PCB
-
View 10 - NL-1 laser head - closeup of laser tube mount.
-
View 11 - NL-1 laser head - closeup of Pre-Amp Back-Panel PCB.
-
View 12 - NL-1 controller - front view.
-
View 13 - NL-1 controller - front panel.
-
View 14 - NL-1 controller - back view.
-
View 15 - NL-1 controller - back panel.
-
View 16 - NL-1 controller - front interior view. There isn't much
inside!
-
View 17 - NL-1 controller - back interior view.
-
View 18 - NL-1 controller - closeup of DC power supply.
-
View 19 - NL-1 controller - closeup of HeNe laser power supply.
-
View 20 - NL-1 controller - (partial) closeup of control PCB.
