Photos of Florod Corporation YAG Laser System

This is a Florod Corporation LCP YAG laser trimming system for semiconductor wafers with adjustment X and Y spot size (aperture) and laser energy. It is a low energy flashlamp pumped Nd:YAG doubled (532 nm) laser that includes a CCD camera mount, single shot and 1 Hz repetition rate options. A more complete description of this system can be found in the chapter: Solid State Lasers of Sam's Laser FAQ.

(Photos and descriptions provided courtesy of: Curt Graber (cgraber@fwi.com).)

Florod Corporation YAG Laser System (Gallery)

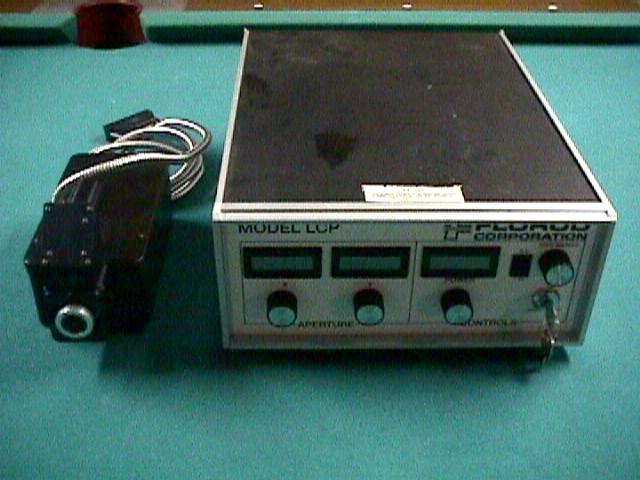

- View 01 - Florod laser system.

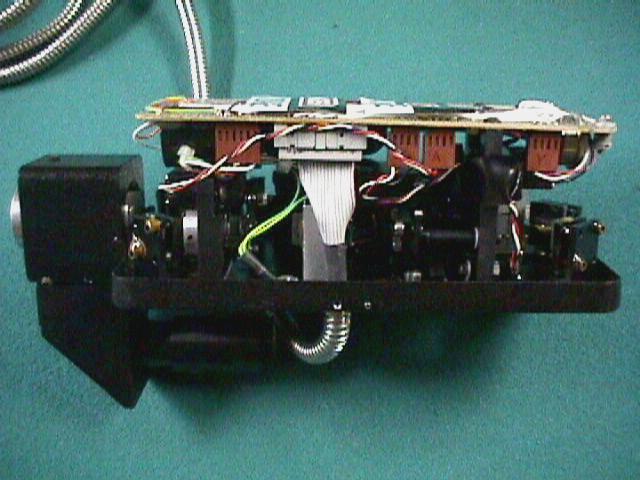

- View 02 - Laser head right side optics and servo's for beam aperture.
- View 03 - Laser head left side pulse former power supply and laser cavity with resonator (shown with 6" rule).

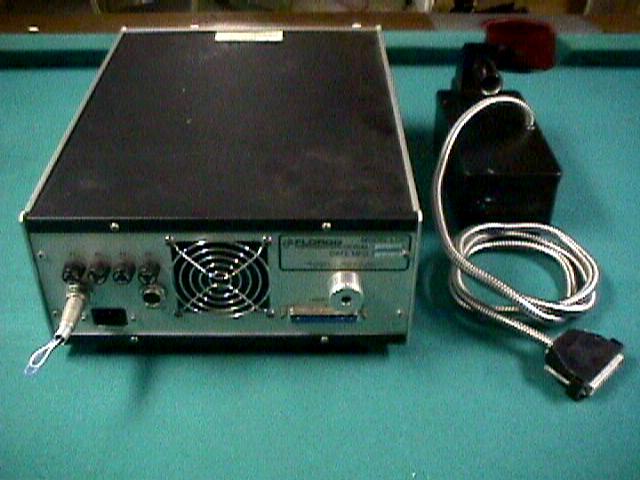

- View 04 - Power supply, rear view.

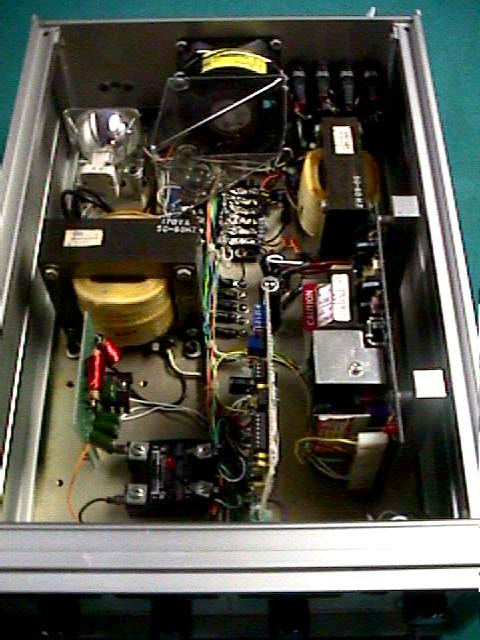

- View 05 - Power supply, top view.

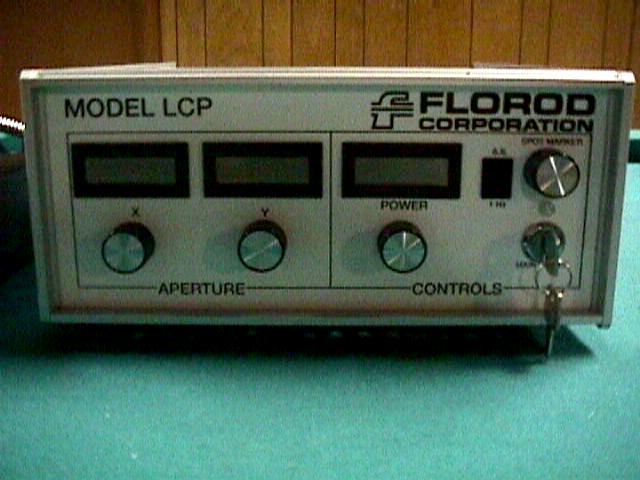

- View 06 - Control panel X/Y delivery and laser power adjustment.

Florod Corporation YAG Laser System

View 04 View 05 View 06
