Lexel Laser Model 65 Laser System (Gallery)
The Lexel Model 65 is one of the few Lexel air-cooled ion lasers (most are
larger and water-cooled). It is capable of about 165 milliwatts blue/green
(488 nm) single mode. It operates from standard 115 VAC, 20 amp service. The
power supply is a very reliable, series regulating design. Original cost
was over $9,000.00 some years ago. This is a superb air cooled laser, built
like a tank.
(The following 2 photos provided courtesy of: Terry Michaels
(104065.2340@compuserve.com).)
-
View 01 - Lexel 65 air-cooled laser head.
-
View 02 - Lexel 65 power supply.
-
Lexel Laser Model 75 Laser System in Operation (Gallery)
The Lexel Model 75 is a small water-cooled laser, a baby cousin to the Lexel
Model 88. It operates from a standard 110 VAC line so you don't need to own
stock in your local utility to be able to afford the electricity bills. :)
Though the output power rating of the Lexel-75 is 100 to 300 mW, some of these
babies will do 450 mW when new. Because of the better cooling, they will last
a lot longer then their shorter air cooled brethren.
(The following 6 photos and descriptions provided courtesy of: Curt Graber
(cgraber@fwi.com).)
-
View 01 - Lexel-75 head and PSU.
-

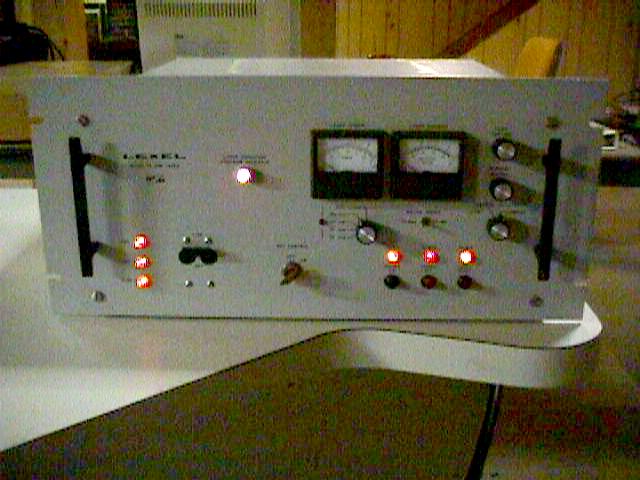

View 02 - PSU powered up and ready to fire.
-

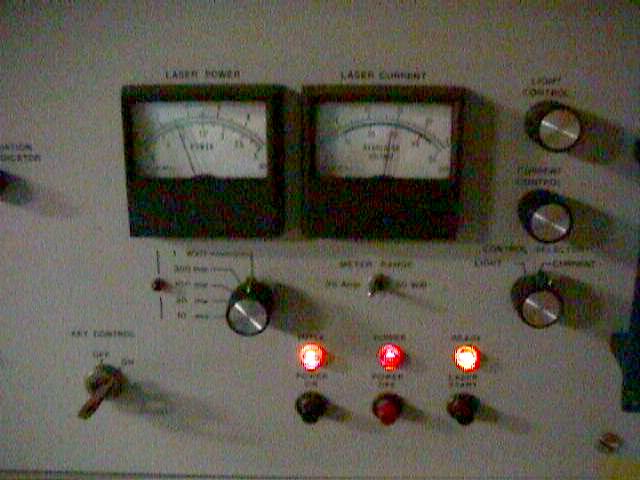

View 03 - Meters showing 14.6 amps and 355mw output on all lines.
-
View 04 - Unit firing in bright light - beam is still vivid and intense!
-
View 05 - Same picture with the lights off.
-

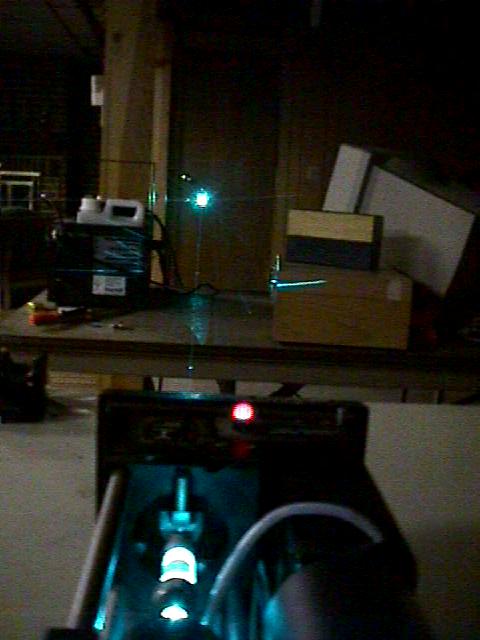

View 06 - Top view with lights off disk.
-
Lexel Laser Model 75 Laser Head (Gallery)
(The following 8 photos and descriptions provided courtesy of: Curt Graber
(cgraber@fwi.com).)
-
View 01 - Business end of a 400+ mW potential.
-
View 02 - Rear mirror tuning knobs and UMB cable in.
-
View 03 - Right side view of Lexel-75 head.
-
View 04 - Rear Brewster window lit with serious amounts of light.
-
View 05 - Front Brewster window. Note the beam shutter switch.
-
View 06 - Under the hood of this argon system running at nearly maximum
power.
-
View 07 - Head Tesla ignitor card and coil.
-
View 08 - Tesla coil firing the tube up with a pulse of high frequency
high voltage.
-
Lexel Power Supply for Model 75 Laser Head (Gallery)
(The following 8 photos and descriptions provided courtesy of: Curt Graber
(cgraber@fwi.com).)
-
View 01 - Lexel power supply with the lid off.
-
View 02 - PSU top view. Transformer and adjustable taps center front.
-

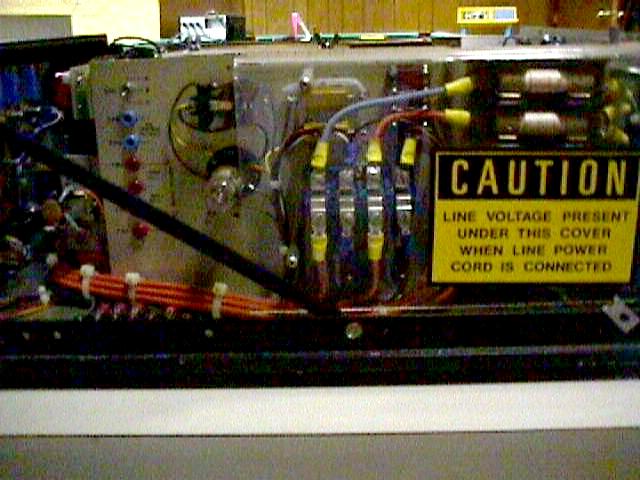

View 03 - PSU right side view test connectors and fuse board.
-
View 04 - PSU passbank transisters and cold plate.
-
View 05 - PSU transformer taps.
-
View 06 - PSU rear view.
-
View 07 - PSU reverse side of passbank and cold plate.
-
View 08 - PSU controller cards.
- Lexel Laser Model 88A Laser Head (Gallery)
This is a nice clean sample of a model 88A laser head. The original model
88 could do 2 W - don't know about the 88A.
(The following photo provided courtesy of: CTR Surplus.)
-
View 01 - Interior view of model 88A laser head.
-
Lexel Power Supply for Model 88 Laser Head (Gallery)
The Lexel Model 88 can produce up to 2 watts or more but requires 220 VAC
at up to 50 A or 208 VAC three-phase! Unfortunately, all we have at the
moment is a photo of the power supply front panel.
(The following photo provided courtesy of: Neil (neil@shabbyshop.com).)
-
View 01 - Front view of power supply used with the larger Lexel 88 laser
head - good for up to 2 watts or more.
-
Lexel Laser Model 95 Laser Head and Power Supply (Gallery)
(The following 4 photos provided courtesy of: Dr. Sergio La Torraca
(s.latorraca@flashnet.it).)
-
View 01 - Lexel model 95 laser head and power supply in operation
-
View 02 - View with laser power meter showing nearly 6 WATTs of beam power
-
View 03 - Lexel 95 power supply front panel.
-
View 04 - Power supply interior. Note 3 fuses for three-phase input!
