Photos of Siemens High Power HeNe Laser

(Photos and description courtesy of: Curt Graber (cgraber@fwi.com).)

Siemens High Power HeNe Laser (Gallery)

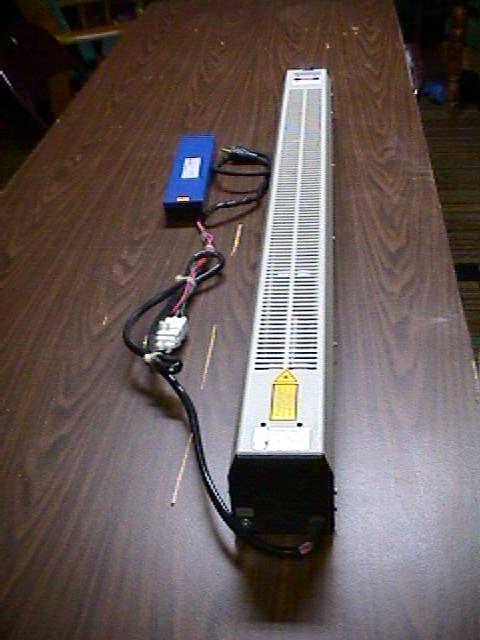

- View 01 - Siemens 40 mW HeNe laser head and power supply (5,250 VDC at 12 mA).

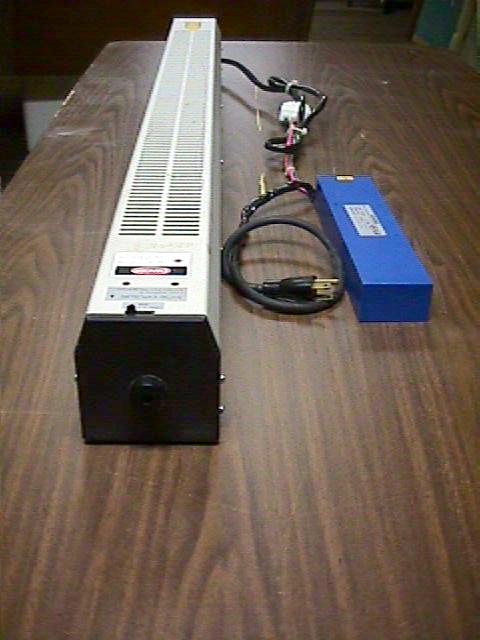

- View 02 - Business end with positive shutter for beam stop.
- View 03 - Long look at a long HeNe laser (43") under power.

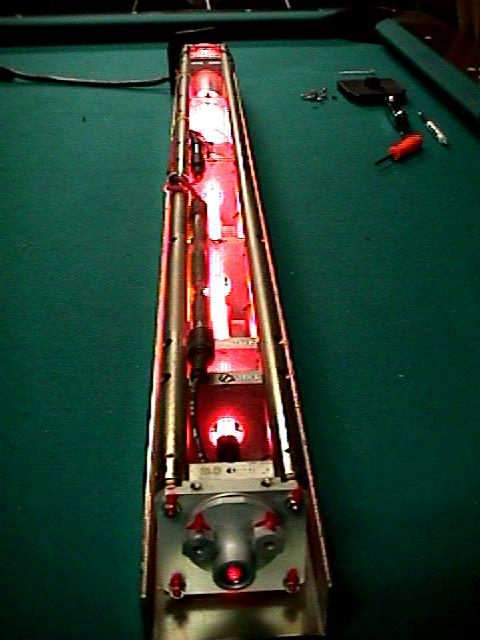

- View 04 - Under the hood of the Siemens powered up doing about 37 mW.

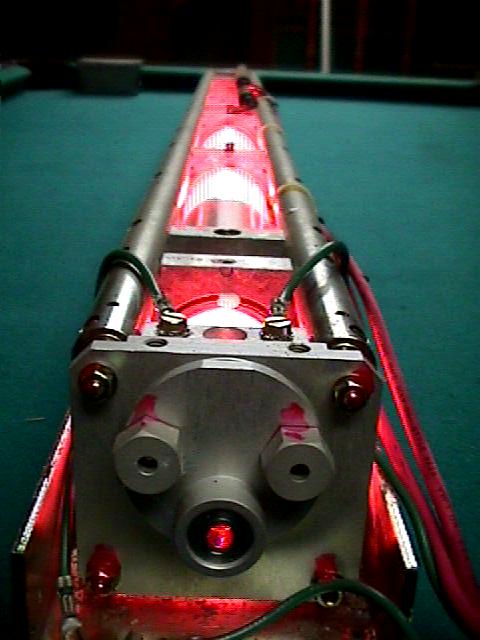

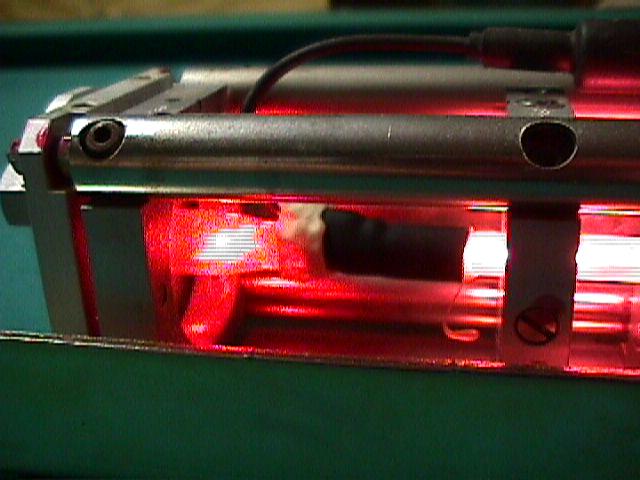

- View 05 - Output coupler and mount. Note the Brewster window glowing brightly.

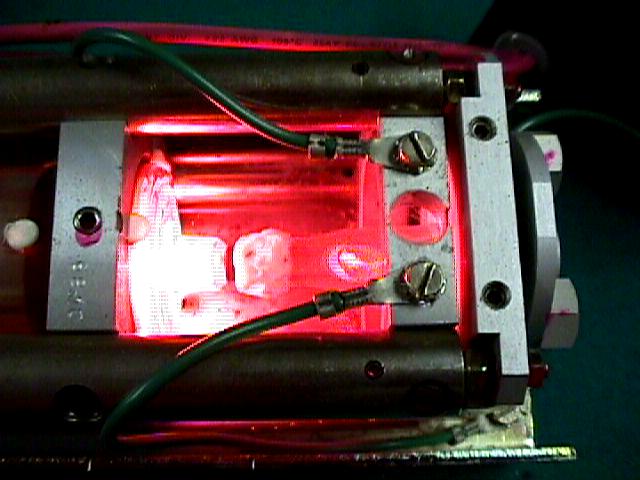

- View 06 - High reflector end and mount.

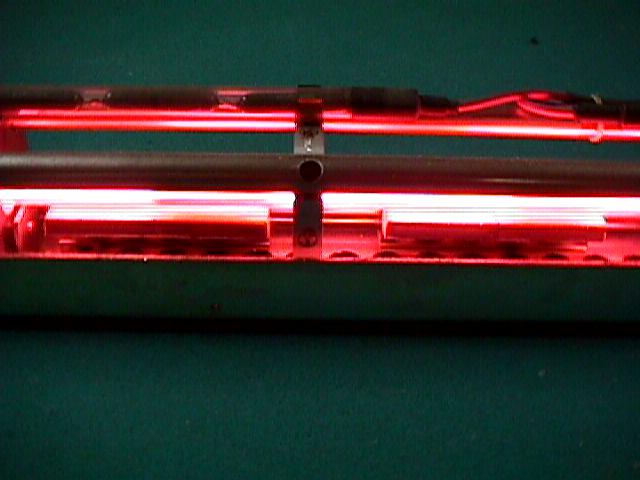

- View 07 - Plasma pinch magnets (4) and their position along the plasma tube.
HeNe Laser in the Dark (Gallery)
- View 01 - Pretty picture 1.
- View 02 - Pretty picture 2.
- View 03 - Pretty picture 3.
- View 04 - Pretty picture 4.
- View 05 - Pretty picture 5.
- View 06 - Pretty picture 6.
