Photos of Spindler and Hoyer Helium-Neon Lasers

• Spindler and Hoyer ZL-150 Axial Zeeman Helium-Neon Laser (Gallery)

  The Spindler and Hoyer ZL-150 is an axial Zeeman two-frequency HeNe laser like those from HP/Agilent, but the output is right and left circularly polarized rather than horizontally and vertically linearly polarized and the split frequency is lower. It uses a standard commercial HeNe laser tube and a different locking technique but should have similar stability. Much more information on these lasers can be found in the chapter: Commercial Stabilized HeNe Lasers of Sam's Laser FAQ.

  • View 01 - ZL-150 laser system front view.

  • View 02 - ZL-150 laser system back view.

  • View 03 - Laser head left front view.

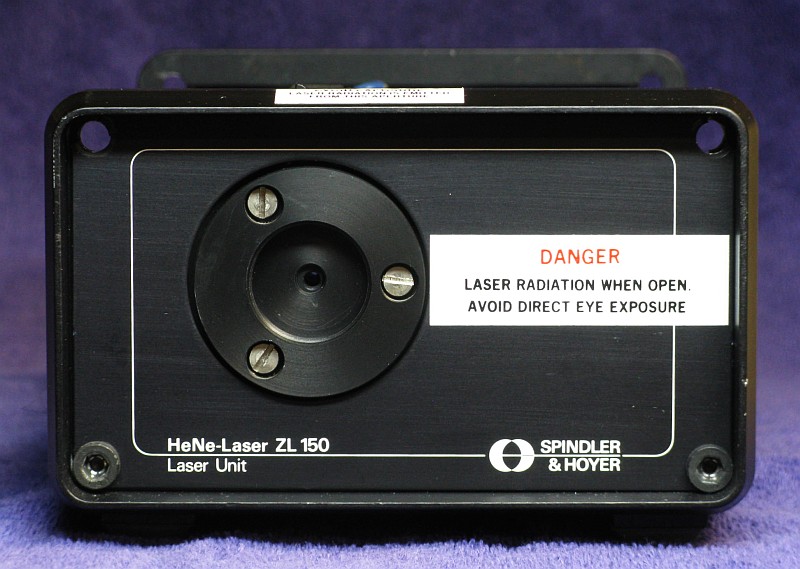

  • View 04 - Laser head front closeup view.

  • View 05 - Laser head right back view.

  • View 06 - Laser head back closeup view.

  • View 07 - Laser head left front interior view.

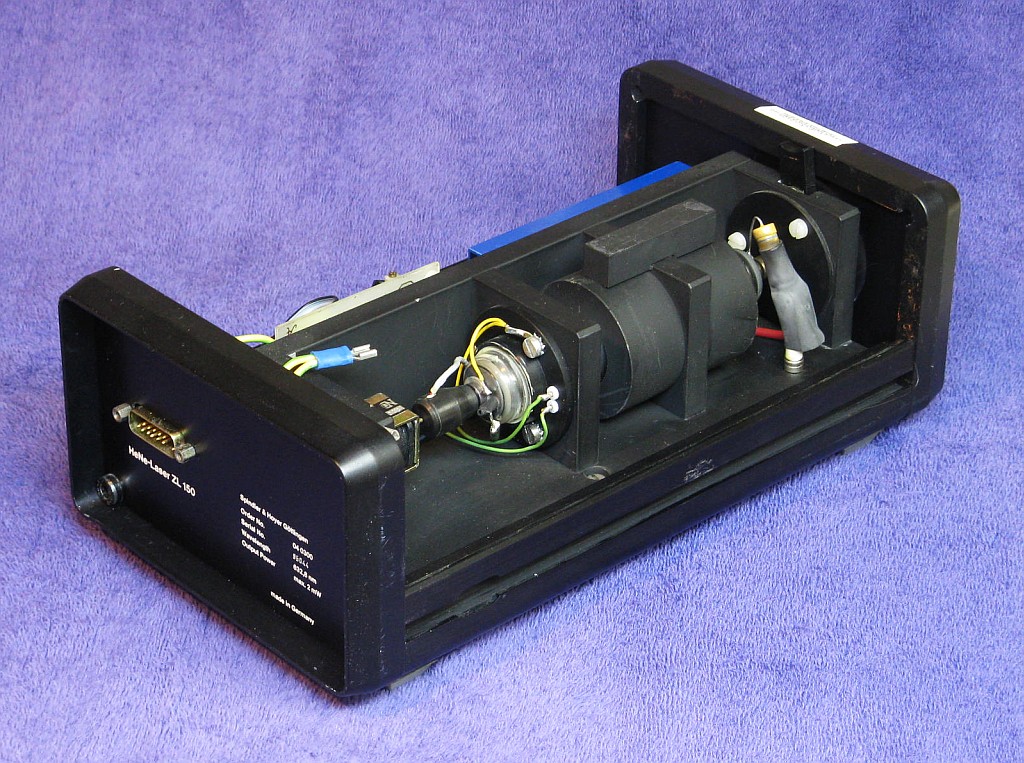

  • View 08 - Laser head right back interior view.

  • View 09 - Laser head left side interior view.

  • View 10 - Laser head right side interior view.

  • View 11 - Closeup of laser head dither solenoid and beam sampler.

  • View 12 - Closeup of laser head photodiode preamp PCB.

  • View 13 - Controller left front view.

  • View 14 - Controller front closeup view.

  • View 15 - Controller right back view.

  • View 16 - Controller back closeup view.

  • View 17 - Controller right back interior view with PCB in place (more or less).

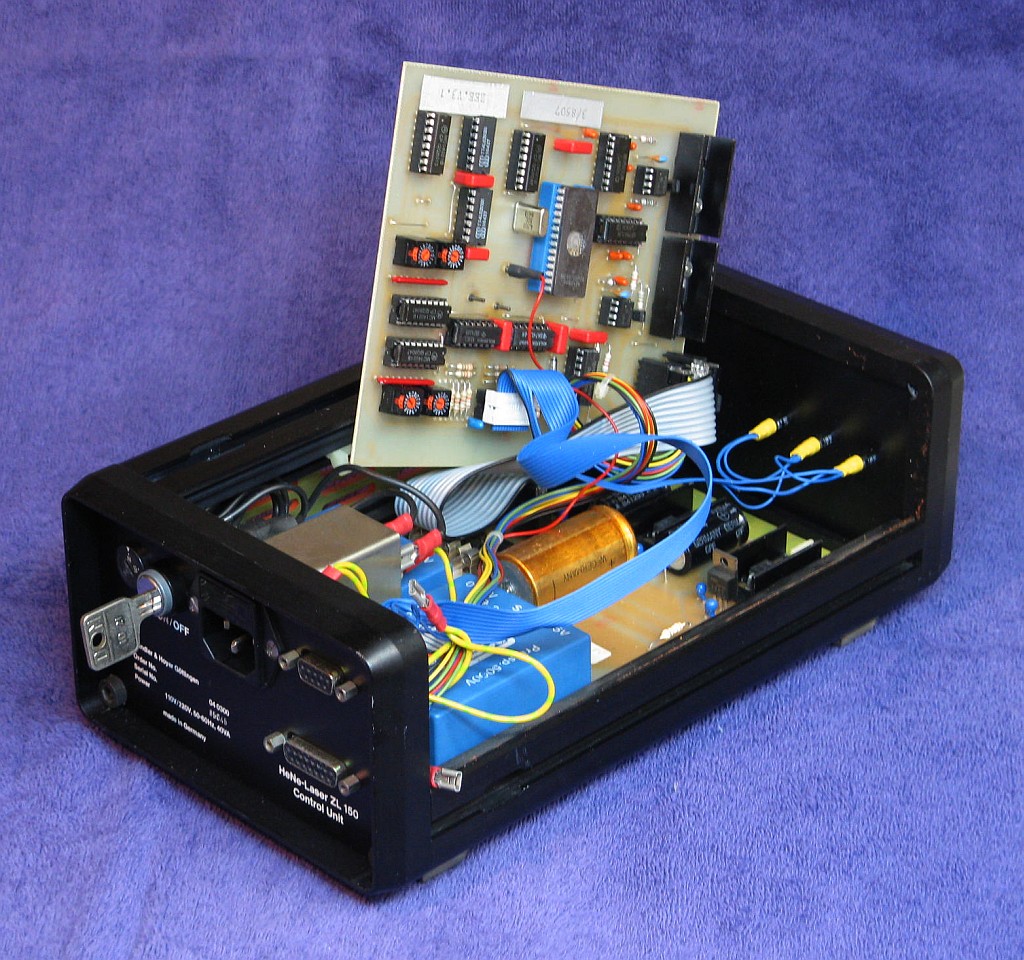

  • View 18 - Controller right back interior view with PCB lifted.

  • View 19 - Controller right back interior view with PCB removed.

  • View 20 - Controller right interior view with PCB removed.

  • View 21 - Top view of controller PCB.

Spindler and Hoyer ZL-150 Axial Zeeman Helium-Neon Laser

View 01 View 02

View 03 View 04

View 05 View 06

View 07 View 08

View 09 View 10

View 11 View 12

View 13 View 14

View 15 View 16

View 17 View 18 View 19

View 20 View 21
