Photos of Wavetronics Helium-Neon Lasers

Wavetronics is a South Korean manufacturer of a variety of lasers including clones of the HP/Agilent 5517A/B/C/D two-frequency HeNe laser" for interferometry based measurement and calibration systems. These are all physically and functionally similar to their HP/Agilent counterparts.

Much more information on these lasers can be found in the chapter: Commercial Stabilized HeNe Lasers of Sam's Laser FAQ.

• Wavetronics WT307C Helium-Neon Laser (Gallery)

  The Wavetronics WT307C is a physical, electrical, and functional clone of the HP-5517C.

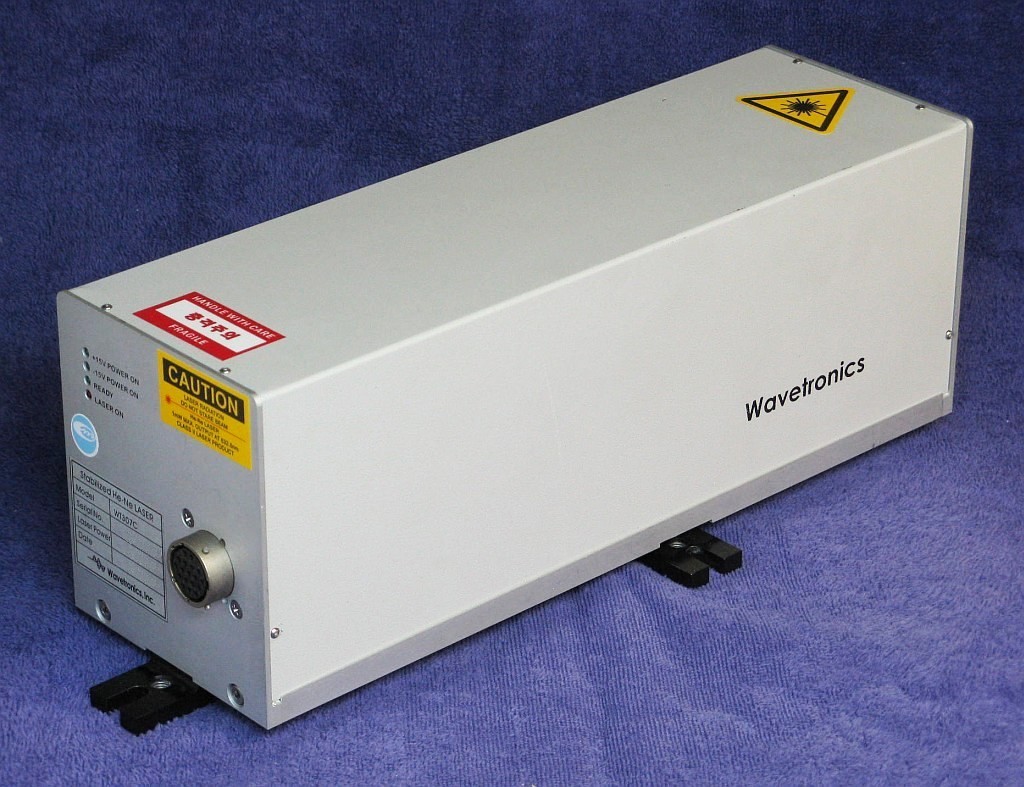

  • View 01 - Left front view.

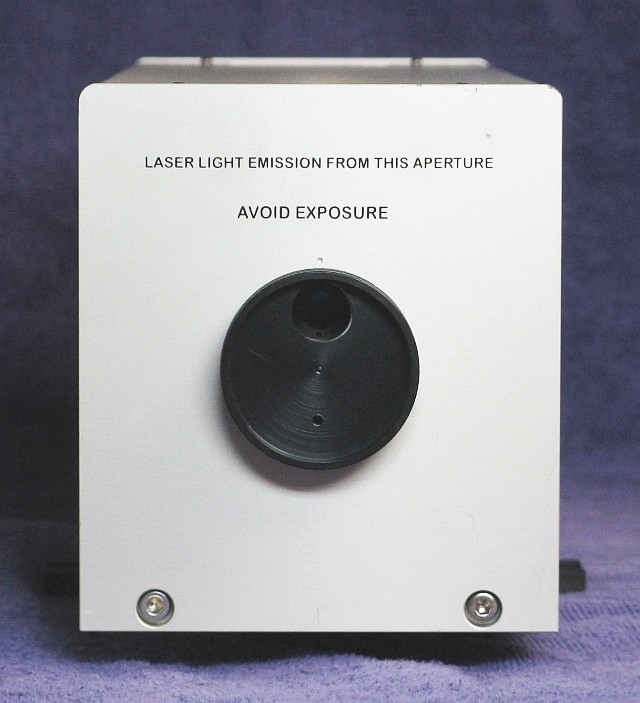

  • View 02 - Front closeup view. Like the shutter wheel on the HP/Agilent lasers, this selects the full beam, a narrow alignment beam, or no beam.

  • View 03 - Right back view.

  • View 04 - Back closeup view. The connector is physically and electrically compatible with HP/Agilent interferometers.

  • View 05 - Left front interior view.

  • View 06 - Left side interior view. Most This shows the control PCB, QWP, and beam expander. The small connector with 2 black wires is for the tube heater; the blue wire is the cathode return for the high voltage.

  • View 07 - Right back interior view.

  • View 08 - Right side interior view. The HeNe laser power supply is at the lower middle with the ballast resistor in thick heat-shrink at the lower left. The backplate connector PCB is at the left with the beam sampler, tube assembly, beam expander and QWP visible from left to right.

  • View 09 - Closeup view of backplate connector PCB.

  • View 10 - Closeup view of beam sampler assembly.

  • View 11 - Closeup view of beam expander assembly.

  • View 12 - Closeup view of control PCB.

Wavetronics WT307C Helium-Neon Laser

View 01 View 02

View 03 View 04

View 05 View 06

View 07 View 08

View 09 View 10 View 11

View 12
